Description

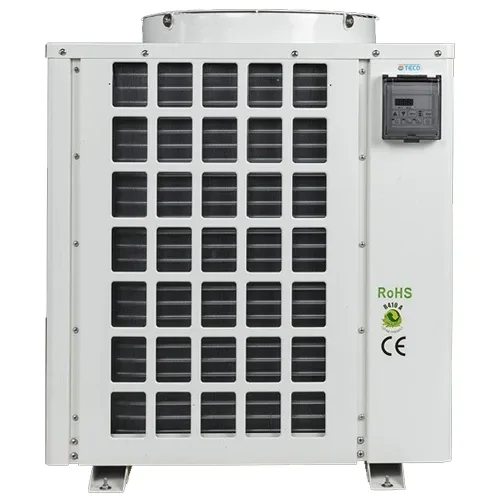

Teco TK-8K Heat Pump 3.5 HP, 240V-60Hz, 1 phase
HIGH-PERFORMANCE REFRIGERATION TECHNOLOGY
TK Heat Pumps use internationally-recognized rotary compressors with a titanium coaxial heat exchangers to ensure low-energy consumption while sustaining the highest in performance throughput. The technology in these heat pumps allows one to decrease noise levels and achieve a high COP (coefficient of performance) contributing to significant energy savings.
DIGITAL THERMOSTAT
The setting of functions is intuitive and the temperature detection is accurate, resolution 0.1/0.2°F. The setting range is 0°-35°C (32°F-95°F) and there is a closed loop temperature control system with high accuracy and extremely tight differential (0.5°C/1°F). Displayed temperature is in °C or °F and there are security alarms. Possibility to monitor the chiller even remotely, degree of protection IP24.
EFFICIENT DESIGN
The unit is characterized by a solid structure and was designed to provide maximum oxidation protection–great for use with salt-water.
UNIQUE FEATURES
TK Heat Pumps are also suitable suitable for many industrial applications.
Teco TK-8K Heat Pump 3.5 HP, 240V-60Hz, 1 phase
HIGH-PERFORMANCE REFRIGERATION TECHNOLOGY
TK Heat Pumps use internationally-recognized rotary compressors with a titanium coaxial heat exchangers to ensure low-energy consumption while sustaining the highest in performance throughput. The technology in these heat pumps allows one to decrease noise levels and achieve a high COP (coefficient of performance) contributing to significant energy savings.
DIGITAL THERMOSTAT
The setting of functions is intuitive and the temperature detection is accurate, resolution 0.1/0.2°F. The setting range is 0°-35°C (32°F-95°F) and there is a closed loop temperature control system with high accuracy and extremely tight differential (0.5°C/1°F). Displayed temperature is in °C or °F and there are security alarms. Possibility to monitor the chiller even remotely, degree of protection IP24.
EFFICIENT DESIGN
The unit is characterized by a solid structure and was designed to provide maximum oxidation protection–great for use with salt-water.
UNIQUE FEATURES
TK Heat Pumps are also suitable suitable for many industrial applications.
Technical Specifications
Recommended Aquarium Size
please contact us for specific sizing
Horsepower
3.5 HP
Maximum Pressure
29 psi
Minimum Flow Rate
1,189 gallons per hour
Maximum Flow Rate
1,585 gallons per hour
In/Out Water Connection
1.5″ tube diameter
Cooling Power
8.70 kilowatts (kW)
Power Supply
240-volts, 60Hz – 1 phase / 13.1 Amps
Required Breaker
60 Amp
Gas/Refrigerant
R410A
Power Consumption (Cooling)
4,490 watts – 15,320 BTU/hr
Power Consumption (Heating)
2,800 watts – 9,550 BTU/hr
Working Modes
Cool, Heat
Weight
231.49 lbs (105 kg)
Dimensions
26.18″ x 28.54″ x 33.15″
Product code: 7124Item No. CH-TK8K
