Description

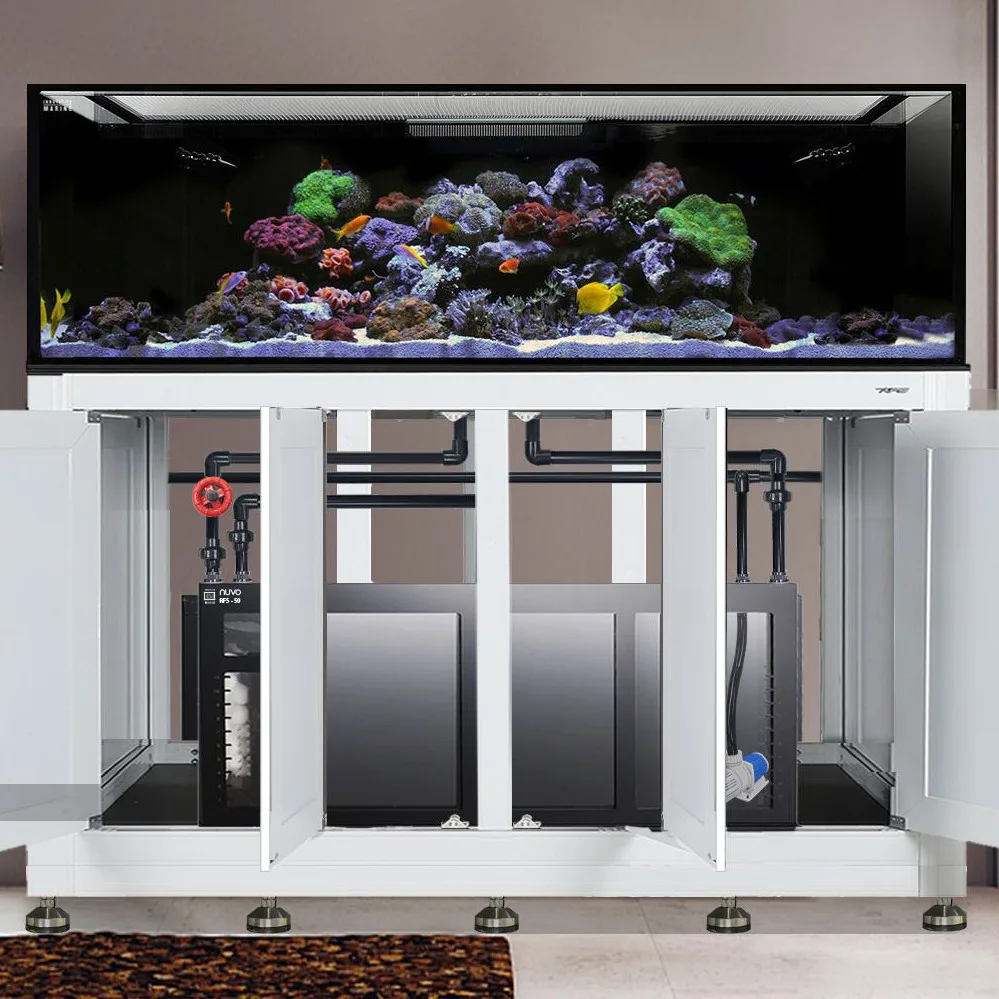

IM EXT 240 Gallon Complete Reef System – White (Made to Order)
Aquarium:
Approximately 240 Gallons
Dimensions: 82.7″ x 30″ x 21.7″
Solid Glass Overflow DIMS: 23.6″ x 3.5″ x 5.9″
Crated Package Weight: 940 lbs.
Included Plumbing: 2 – NUVO Nozzles [Return] 1- Primary Drain Assembly [Overflow] 1 – E-Drain Assembly, 1 – Secondary E-Drain Assembly
3 – 1″ Pre-drilled “Bean Animal” Internal Overflow [Primary Drain, Emergency Drain and Secondary E-Drain]
2 – 3/4″ Pre-drilled Return Hole
Laser Cut Black Acrylic Weir w/ Slot Cut Rear Glass Panel
Ultra-Thick 19mm High Clarity Low Iron Glass
Euro Brace Thickness: 15mm
Bottom Glass Thickness: 22mm
Diamond Edged Flat Polished
Signature Black Silicone
Pre-Assembled SafeScreen Mesh Screen Lid
Pre-Installed Rubber Leveling Mat
Recommended Return Pump Flow Rate: 1000-2000 GPH
APS Stand:
Stand DIMS: Length: 82.7” Width: 30” Height: 35.4”
Interior DIMS: Length: 76.8″ Width: 24.5″ Height: 33.75
Stand Package Weight: 181 lbs.
6 – Door (4 Front, 2 Side / “Winged”)
Anodized Aluminum
Corrosion Resistant
No Warping or Swelling
Integrated Hardware
Easy Set up (semi-assembled)
Includes hex torque wrench
Light Weight
Modular
Includes pre-cut Closed Cell PVC Foam boards
Top and Bottom Magnetic Door Latches
Side Access Doors
Spacious interior for sumps
100% recyclable aluminum
Includes Leveling Frame with Adjustable Feet
Color: White
RFS50 Sump:
74 Gallon Capacity
Dimensions: L 49.8″ x W 18.8″ x H 18.3″
Weight of Sump in Box: 87.1 lbs.
Weight of Sump: 81.6 lbs.
Reinforced Double Walled Acrylic Frame Construction
Silent Siphon Safety Drain Design
Laser Etched Water Level Indicators (Front and Side Views)
3 – 1” High Quality PVC Bulkheads
1 – 3/4” High Quality PVC Bulkhead with Hose Barb Fitting
Vertical Heater Compartment with Cord Management
Drain Silencing Plates with Filter Sponge
Acrylic Filter Media Cups – Includes High Performance Fiber Ball Media
Accommodates 4” Filter Socks
Adjustable Water Height Baffle in Protein Skimmer Chamber
Polycarbonate Noise Reducing Lid Covers
(With Protein Skimmer Cutout)
Refugium Chaetomax LED Light Bracket
*Light Sold Separately
1/4“ And 1/2” ATO Return Hose Barb
4 – Black RO/DI Push Fit Fittings
Cord Management Hooks with Cutout Slots
Black Adhesive Cord Holders
MightyJet XL – 2656 GPH DC Submersible Return Pump:
Ultra Quiet DC Technology
Run-Dry Protection
One Touch Feed Mode
Includes Controller
Seven Speed Settings
Min Flow Rate 1,062 GPH
Max Flow Rate 2,656 GPH
Dims 7″ x 4.09″ x 5.11″
Max Watts 85W/24v DC
NOT INTENDED FOR EXTERNAL USE
Complete Preassembled Plumbing Kit:
Premeasured
Glued
Connects aquarium drains and returns to sump
PVC bulkheads
Includes siphon drain gate valve specifically made to be used in Saltwater
Assembly requires tightening of bulkheads and unions.
NUVO EXT Complete Reef System
EXT Aquarium – A New NUVO Line overflowing with space
Built from the footprint of the Award-Winning Fusion Aquariums, the NUVO EXT is an Innovative Marine first. Its first to incorporate an all-glass overflow, its first with a “Bean Animal” safety drain system and its first that allows 100% room for unobtrusive aquascaping.
The NUVO EXT (External Overflows) design unites beauty with purpose, taking a page from the proven and tested Bean Animal style safety drain system. The dual drains work in tandem, reducing noise and prevention of accidental spillage and blockage. Creating silence, safety and redundancy.
Out of the box, the NUVO EXT is today’s modern reef ready system that is ready to be customized just the way you like it as well as the freedom for aquascape creativity.
NUVO APS (Aluminum Profile Series) Stand
The NUVO APS stand sets new standard in aquarium furniture.
Aluminum has been a tried-and-true element for custom commercial stands, because of its versatility, strength, and the fact that it is very light weight. Innovative Marine just brought that technology to…
