Description

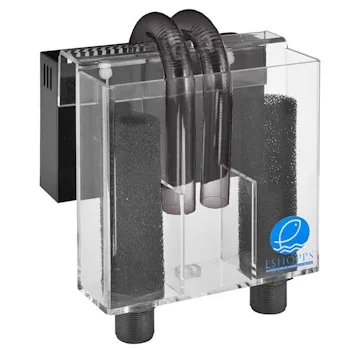

Eshopps PF-1200 Overflow Box, 150-200 gal tank, Dual
Add an overflow to any aquarium with Eshopps PF series of hang on back overflows. Adding a sump to a tank will allow you to hide equipment and while adding water volume making your tank more stable. Traditional overflows require you to drill holes in your aquarium where Eshopps PF HOB overflows use a siphon to draw water over the wall of the tank without any modifications to your aquarium.
Specifications:
Model
Dimensions
Bulkheads
U-Tubes
Recommended Tank Size
Max Flow Rate
PF-Nano
4″ x 2.5″ x 8″
One 3/4″
One
10-20 Gallons
200 GPH
PF-300
6″ x 3″ x 10″
One 1″
One
35-75 Gallons
300 GPH
PF-800
8″ x 3″ x 10″
One 1″
One
75-125 Gallons
800 GPH
PF-1000
9″ x 3″ x 10″
Two 1″
Two
125-150 Gallons
1000 GPH
PF-1200
10″ x 3″ x 10″
Two 1″
Two
150-200 Gallons
1200 GPH
PF-1800
12″ x 4″ x 10″
Two 1.5″
One
200-300 Gallons
1600 GPH
In most cases, we would recommend drilling your aquarium and using an internal overflow like the Eshopps Eclipse, but in some situations, a HOB style overflow may be the best option. Hang on back overflows do require more monitoring and safety precautions to be in place, but can be completely reliable if installed properly and maintained regularly. Installation only takes a couple of minutes, and the PF-1000 only requires 3″ of clearance outside the tank to drain water down to a sump, refugium, or wet/dry filter. Just lower the overflow box onto your aquarium and then connect your favorite type of plumbing to the included 1″ bulkheads.
Specifications:
Item #
Model
Dimensions
Tank usage
10100
PF-Nano
4″x2.5″x8″
10-20g Nano
11000
PF-300
6″x3″x10″
30-75g Single
11005
PF-800
8″x3″x10″
75-125g Single
11010
PF-1000
9″x3″x10″
125-150g Dual
11015
PF-1200
10″x3″x10″
150-200g Dual
11020
PF-1800
12″x4″x10″
200-300g Dual
