Description

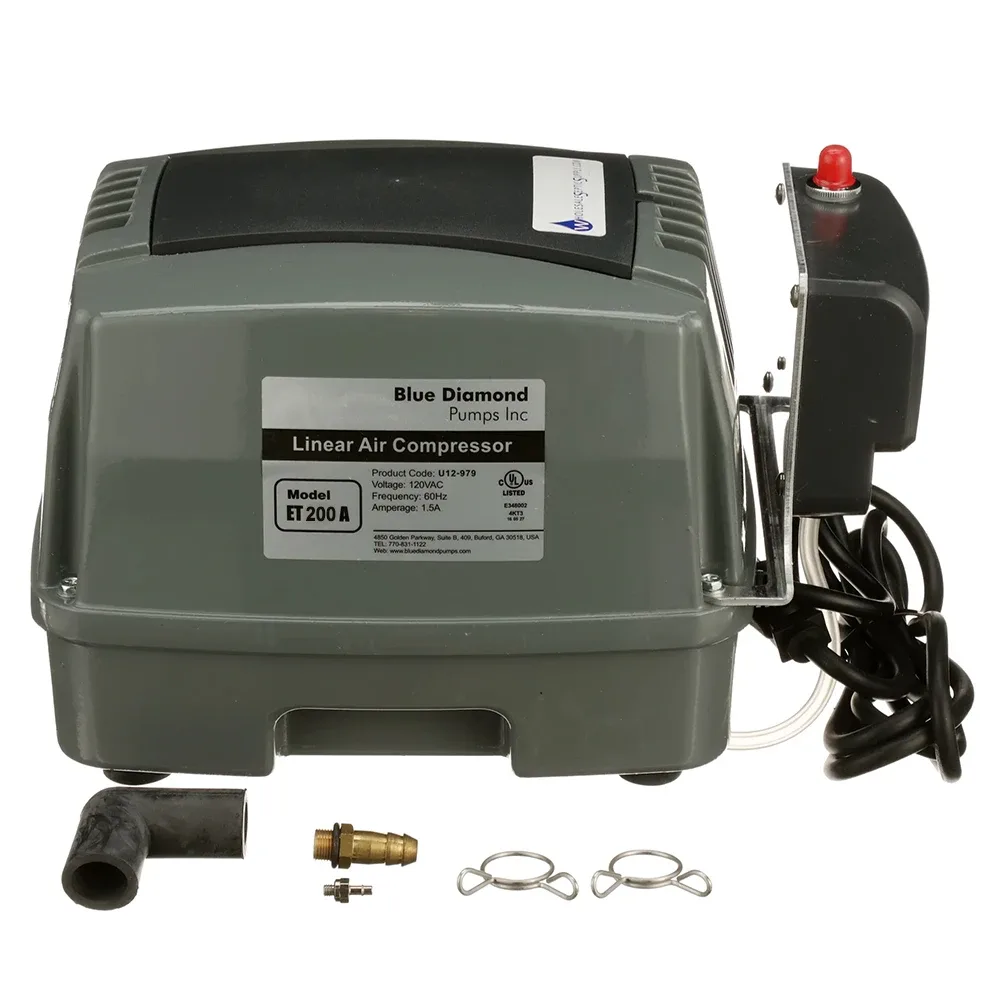

Blue Diamond ET200A W/ALARM Linear Air Pump
The Blue Diamond ET series aerators are designed for relatively low pressure. Tubing should not exceed 130′ and diffusers should only used in water up to 7′ deep.
Blue Diamond ETA Series Air Pumps with Alarm have primarily been used in the septic industry, but can be used in any application where it is important to be promptly notified when the air pump has failed to supply air to your aquarium, pond or septic application.
Compact, weatherproof cast aluminum alloy body
Energy-efficient Green Drive technology for low power consumption
Suitable for intermittent and continuous duty applications
Replacing diaphragm makes maintenance easy and effective
Specially formulated diaphragm material for extended life
Made in in China
Alarm SystemThe built-in alarm has a 3-position switch. Set the switch to “test” to hear the alarm and light. Always make sure the alarm is working properly before installation. Once installed, set the switch to “alarm” (flashing light and alarm sound) or “mute” (flashing light but no alarm sound) depending on your preference.
ConnectionsAir outlet is threaded inside for use with included barb adapter, but we recommend instead using the provided rubber elbow when connecting 3/8″ tubing. Larger tubing may be connected directly to the smooth outer surface of the air outlet. 14mm outlet can accommodate 1/2″ tubing, while 18mm outlet can accommodate 5/8″ or 3/4″ tubing. To use 1/2″ tubing with 18mm outlet, you will need additional adapters.
On all models where the brass is used to connect to a septic pump alarm, the brass is 4mm.
2 Year WarrantyThis warranty does not include the diaphragm kits, which are a replaceable, wearable part (typically replaced every 12-18 months). Warranties are at the discretion of the manufacturer as to whether the damage is due to misuse or to defect.PGP TipThe most common problem with this and other larger air pumps is premature diaphragm tearing due to excessive back pressure. People don’t tend to understand how much air the large sized pumps produce. If an air pump is powering too small of a diffuser or too few outlets, excessive back-pressure can occur. The solution is to add a tee with a ball valve or other “bleeder valve” so that excessive air can be bled off into the atmosphere. Start with the valve completely open and slowly close it until you have the maximum output from your air diffusers without unnecessary back pressure.
Model
Startup
Power
Performance
Outlet
Noise
Weight
Dimensions (Inches)
ET40A
55W
30W
40Lpm@ 0.15 bar
14mm (0.55″) Slip;10mm (0.39″) Barb
40dB
4.3kg
9″ x 6″ x 7.5″
ET60A
85W
55W
60Lpm@ 0.17 bar
18mm (0.71″) Slip;12mm (0.47″) Barb
45dB
6.0kg
8″ x 6.5″ x 6″
ET80A
105W
75W
80Lpm@ 0.1 bar
7.0kg
85″ x 75″ x 7″
ET100A
125W
80W
100Lpm@ 0.1 bar
8.5kg
9.5″ x 8″ x 7″
ET120A
90W
90W
120Lpm@ 0.1 bar
9.5kg
10.5″ x 8.5″ x 8″
ETD150A
130W
130W
[email protected] bar
9.5kg
14″ x 8.5″ x 8″
ETD200A
160W
160W
[email protected] bar
9.5kg
14″ x 8.5″ x 8″
