Description

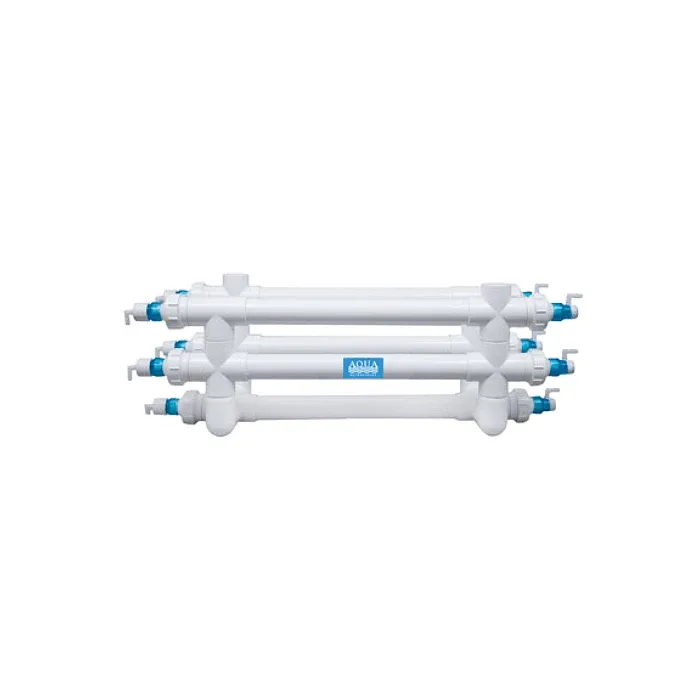

Aqua UV Ozone/UV Combo 200 Watt 2″ – White
Aqua Ultraviolet’s Ozone/UV 200-Watt Units contain five lamps for top-of-the-line water sterilization for both freshwater and saltwater tanks. This unit can sterilize up to 13,000 gallons of freshwater and 1,500 gallons of saltwater, making for a heavy-duty system to keep your aquaculture units clean.
Ozone/UV 200 Watt Unit(PN: A00228) Ozone, 200-Watt Unit, 2″ Inlet/Outlet, White, NEMA Transformer, 120V/60Hz
Specifications
Dimensions: 40-7/8” x 14” x 17-1/2”
Number of Lamps
5
120 Volt Amp Draw
2.18
Grams PD
120
Water Sterilization Measurements
Freshwater: 8,500 – 13,000 GallonsSaltwater: 1,500 Gallons
Recommended Flow Rate for UV Dosages
at 30,000 µw/cm2 (EOL) GPH: 6,600 (Max Flow Rate)at 45,000 µw/cm2 (EOL) GPH: 4,400at 60,000 µw/cm2 (EOL) GPH: 3,300at 75,000 µw/cm2 (EOL) GPH: 2,640at 90,000 µw/cm2 (EOL) GPH: 2,200 (Min Flow Rate)
Information for Reef Tanks
A UV rated in the 30,000 or 45,000 µw/cm2 (EOL) is ideal for the reef environment. UV’s used at higher kill rates will destroy the planktonic food supply for the reef.
Information for Marine Fish
(No reef or live rock) A UV rated in the 75,000 or 90,000 µw/cm2 (EOL) will be the most effective at controlling fish disease. All UV dosages are calculated at the end of lamp life (14 months).
